JHSP-30 SF6 Portable Helium Ion Detector
  • JHSP-30 SF6 Portable Helium Ion Detector

JHSP-30 SF6 Portable Helium Ion Detector


recommendation index：
Highly integrated all-in-one design
Adopting computer reverse control technology to realize the digital operation of the instrument
Adopt central cutting technology to achieve a high degree of automation of the instrument
Digital electronic zeroing technology enhances the anti-interference ability of the instrument

  • The portable helium ion detector for discharge decomposition products of JHSP-30 SF6 equipment adopts the principle of helium ionization gas chromatography, which can analyze 15 decomposition products such as H2, O2, N2, CH4, CF4, CO, CO2, C2F6, C3F8, SO2F2, SOF2, SO2, H2S, COS, CS2 in sulfur hexafluoride gas. Provide data support for judging whether there are latent faults such as spark discharge, arc discharge, gap breakdown, corona, and surface discharge in GIS, and ensure the safe operation of the power grid

Technical performance:

  • Analysis period: < 20min

  • Maximum error: < 3%

  • Stability time: < 30min

  • Working environment: -40~ 50 ℃

  • Detection channel: 2


Related recommendations

JHPD-500 Multifunctional Partial Discharge Detector
JHPD-500 Multifunctional Partial Discharge Detector

Small size, light weight, easy to carry

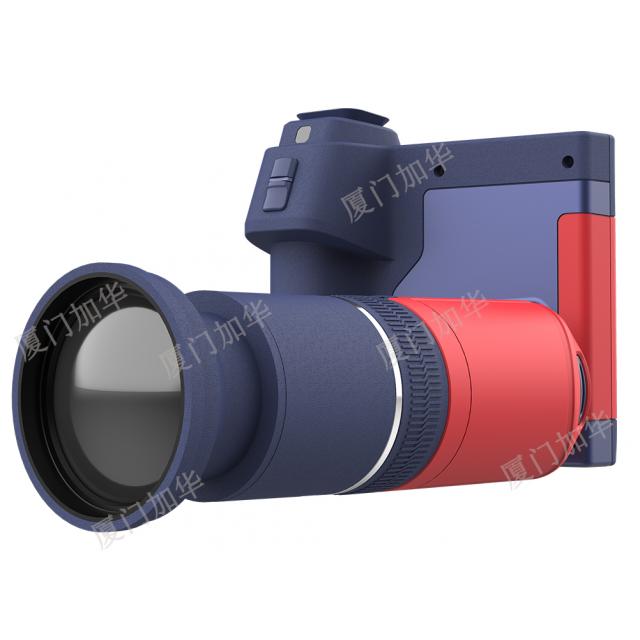

JHRX-3000 Infrared Thermal Imager
